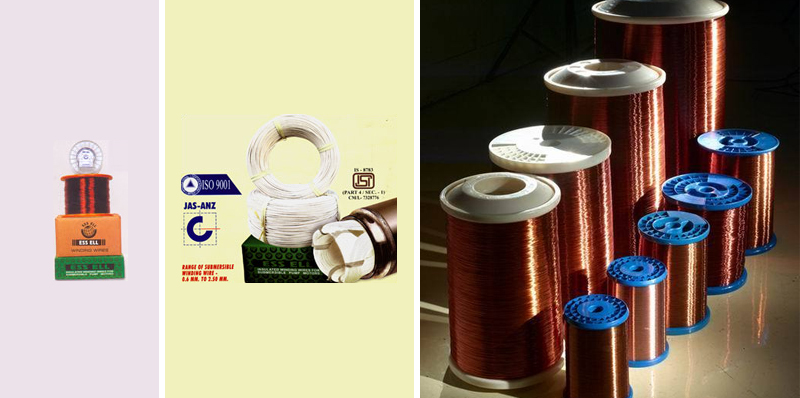

Super Enameled Copper Wires

Stockiest of "ESS ELL" Brand supper Enamelled copper wire & submersible winding wire of copper, Pvc insulated & Poly wrapped.

Super Enamelled Copper Wires Super Enamelled Copper Wires Super Enamelled Copper Wires




 TECHNICAL DETAILS - TESTING & APPEARANCE
Enamel Base Modified - Polyester Modified - Polyester Polyester Limide Dual Coat
(Lmide - Amide)
Thermal Rating
130o
155o
180o
200o
Thermal Class
B
F
H
H+
Colour
Light Brown To Brown
Dark Brown
Brown
Light Brown
Range
0.122mm. To 4.0 mm
0.122mm. To 4.0 mm
0.122mm. To 4.0 mm
0.5 mm To 2.0 mm
Old Specification
I .S - 48000 PT -V
I .S - 48000 PT -V (Type II)
I .S - 48000 PT - IX/VIII B
I .S - 48000 PT -XIII
New Specification
I. S. - 13730 PT - 34
I. S. - 13730 PT - 3
I. S. - 13730 PT - 8
I. S. - 13730 PT - 13
Cut Through
240o C
240o C
300o C
320 C
Heat - Stock
155oC
175oC
200oC
220C
Abrasion Resistance
Flexibility Solvent Resistance
GOOD
GOOD
VERY GOOD
EXCELLENT
Application
All General Electric Equipment
General Purpose Rotating and Static Electrical Equipment
For F H P Motors, Hand Tools, Electromagnetic Coils
Special Motor
including Hermetic Motors
Special Characteristics
Ideal For Rewinders
Balanced Electrical & Mechanical Properties Good For O.E.Ms.
Higher Thermal Endurance Excels Modified Polyester In Thermoplastic Flow, Aveasion And Heat Shock
Very High Thermal Property, Excellent for Hermetic Use.
